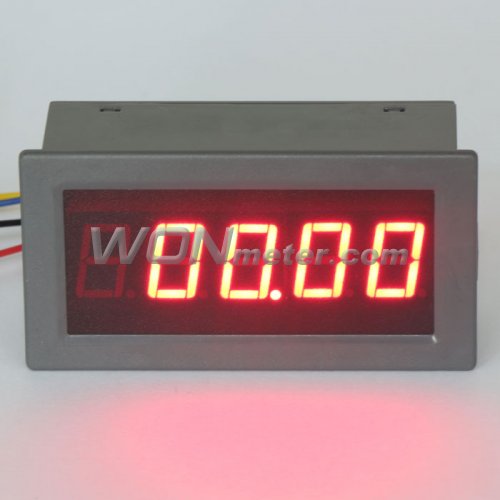

DC Ammeter DC 0 ~ 50A Current Meter High Accuracy Digital Tester 0.56" Red Led Display Ampere Meter DC 5V Panel Meter Need Extra 75mV/50A Shunt

  • Item ID #100080
Qty.:

List Price: $12.99 Our Price: $9.20Save 29%

Price(per unit)
1-4
$9.20		 5-9
$8.74		 10-19
$8.28		 20-29
$7.82		 30+
$7.36
Buy More: please contact us

It is a Digital Ammeter/Ampere Meter, Operating voltage: DC +5 V +/- 0.5, Measure Current Range: 0~50A DC, It has Reverse polarity protection, small size, high efficiency, long term stable and reliable quality,easy installation and use. Application: industrial equipments,electronic equipment, Power distribution box, distribution cabinet, regulators, teaching aids and All kinds Current Measuring


Other Products in Digital Ammeter

page 1 of 2 Previous Page Next Page
Features:
  • Need to connect with Extra Shunt (75mV / 50A).
  • The package does not include the shunt Dimensions: 79 x 42 x 27 mm
  • Cutting size: 76 x 39.5 mm
  • Operating voltage: DC +5 V +/- 0.5
  • Operating Current: <100mA
  • Measure Current Range: 0~50A DC
  • Display: 4 1/2 0.56" Red LED digital tube
  • Input impedance:> 1 Mohm
  • Measurement rate: >/= 2 / S
  • Over-range display: "H"
  • Working temperature: -10 ~ +50 °c
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106kPa
  • Sunlight: No direct exposure
  • SMT process
  • Quartz crystal, high accuracy
  • Case closure,pure flat displayed
  • limiting resistor, LED digital tube consistent brightness
  • With Calibration potentiometer
  • Selectable decimal point position
  • Can Measure positive and negative amps
  • Power supply with polarity protection circuit
  • Application: industrial equipments,electronic equipment, Power distribution box, distribution cabinet, regulators, teaching aids and All kinds Current Measuring
Package included:
  • 1 x Digital Ammeter (Digital Tester)
